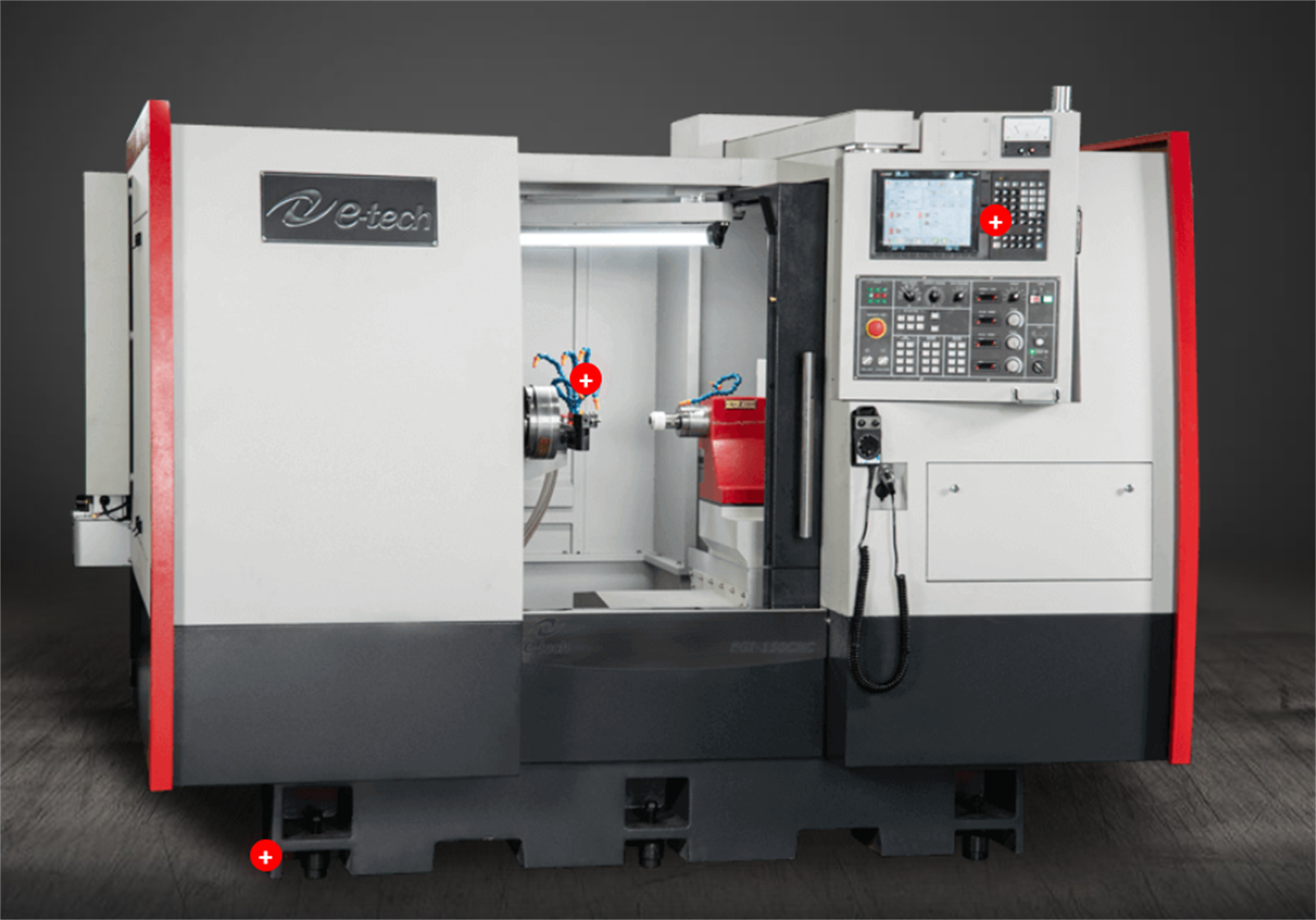

E-tech EGM-350 CNC Precision Hybrid ID &OD Grinder (EGM-350 CNC)

Control system: Mitsubishi M80 or FANUC 0i-TF with 10.4” screen
Three-direction dresser stand x 1 set, diamond dresser x 3 pcs
Wheel spindle surface detecting & crash control system (current indicator)
Grease type grinding wheel spindle: (Select 2 pc from 8,000~50,000RPM)
Hydraulic 8" 3-jaw chuck (w/ solid roary cylinder)
MPG handwheel: EGI 2 Axes, EGM 3 Axes control
X Axis Heidenhain linear scale (resolution 0.05 um)
Electricity cabinet w/ heat exchanger
Standard coolant tank 140L
Automatic lubrication system
4-color indication signal light
Levelling bolts and blocks
Tools & tool box
Electrical wiring diagram
Operation manual & part lists
Full-enclosed splash guard
Workhead spindle A2-5
Electrical lubricator
LED working light

Mitsubishi controller (M80) dressing program: Radius / Taper / Multiple step / form shape
Mitsubishi controller (M80) iGrind program
Coolant system with magnetic separator & paper filter
Coolant system with magnetic separator
Coolant system with paper filter
CE standard electrical cabinet
Electrical cabinet air conditioner
Grease type grinding wheel spindle
Oil mist type grinding wheel spindle
Workhead spindle A2-6 (65mm thru-hole)
Manual strong type 7" 3-jaw chuck
Oil & mist collecting system
Spindle oil mist lubrication system
ID auto. gauging device
Diamond roller dressing device
Dressing sensor system
Soft-Jaw turning assembly
B axis linear scale w/ digital readout
Safety door lock

General capacity	Max. grinding ID	mm	φ400
	Max. grinding OD	mm	φ400
	Swing over workhead	mm	φ500
	Max. grinding depth	mm	260
	Max. weight of workpiece	kg	50
	Max. length of workpiece	mm	300
	Type of workhead	Dual indenpendent wheelhead
Workhead	3-Jaw chuck	Hydraculic - 8"/10"(opt.)
	Swiveling angle range	deg	+15°～-5°
	Manual travel distance (toward Z axis)	mm	250
	Spindle speed (infinite variable)	rpm	0~1000 (Variable speed)
	Motor rated power / max. torque	kw	1.8(F)/2.2(M)
Spindlehead(Y axis)	OD grinding wheel size	mm	N/A
	ID grinding wheel size	mm	φ100
	Max. spindle speed	rpm	10,000 (std.)
	Spindle motor/ max. torque	Kw/Nm	3.75Kw / 13Nm
Wheelhead(Z axis)	OD grinding wheel size	mm	φ100
	ID grinding wheel size	mm	N/A
	End-Surface grinding spindle (Opt.Z2)	mm	N/A
	Max. spindle speed	rpm	20,000 (std.)
	Spindle motor/ max. torque	Kw/Nm	3.75Kw / 13Nm
X axis	Travel	mm	420
	Max. rapid feedrate	m/min	8
	Heidenhain linear scale resolution	um	0.05
	Min. increment	mm	0.0001
	Servo motor rated power	Kw	1.8(F)/2.2(M)
Y axis	Travel	mm	350
	Rapid feedrate	m/min	8
	Min. increment	mm	0.0001
	Servo motor rated power	Kw	1.8(F)/2.2(M)
Z axis	Travel	mm	350
	Max. rapid feedrate	m/min	8
	Min. increment	mm	0.0001
	Servo motor rated power	kw	1.8(F)/2.2(M)
Motor	Hydraulic motor	Kw	0.75
	Coolant pump	Kw	0.37+0.18
Machine	Net weight	kg	5800
	Gross weight	kg	6300
	Packing size (L x W x H)	mm	3350x2250x1950
