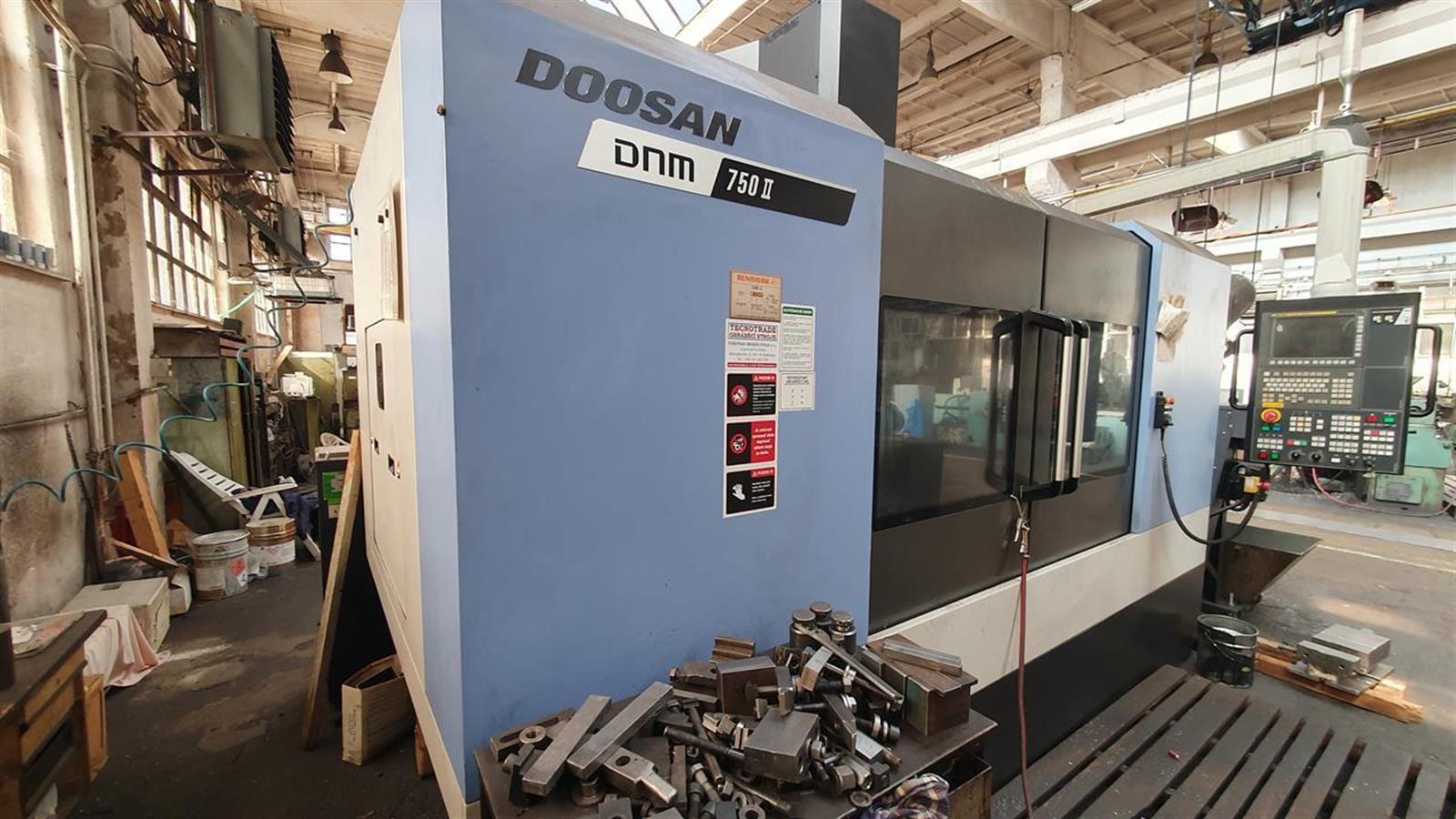

Doosan DNM 750 II Machining center - vertical (Doosan DNM 750 II Machining center - vertical)

Made in: 2018
Characteristic:
Control system: Fanuc i-series
Hours on: 1000 h
Length of the working table: 1630 mm
Width of the working table: 760 mm
Maximum table load (evenly distributed): 1500 kg
Maximum rotary speed of the vertical spindle: 8000 1/min
X-Axis travels: 1630 mm
Y-Axis travels: 762 mm
Z-Axis travels: 650 mm
Maximum feed rate in X-axis: 12000 mm/min
Maximum feed rate in Y-axis: 12000 mm/min
Maximum feed rate in Z-axis: 12000 mm/min
Power of the spindle: 15 kW
Taper: ISO 40
Rapid traverse X/Y/Z: 30/30/24 m/min
Maximum tool diameter: 80/125 mm
Max. tool weight: 8 kg
Max. tool lenght: 300 mm
Machine height: 3170 mm
Machine length: 3850 mm
Machine width: 3435 mm
Machine weight: 13500 kg

Axis X	1630 mm
Axis Y	762 mm
Axis Z	650 mm
Rotary table (4th axis)	no
Type of CNC	FANUC i-series
Table length	1630 mm
Table width	760 mm
Max. part weight	1500 kg
Number of tool pockets	30
Spindle taper
Max. spindle speed	12000 rpm
Spindle motor power	15 kW
-------------------
Weight	13500 kg
Worked hours
Hours under power
State	good
At local norms	---------
Status	under power
Datasheet	Doosan DNM750
