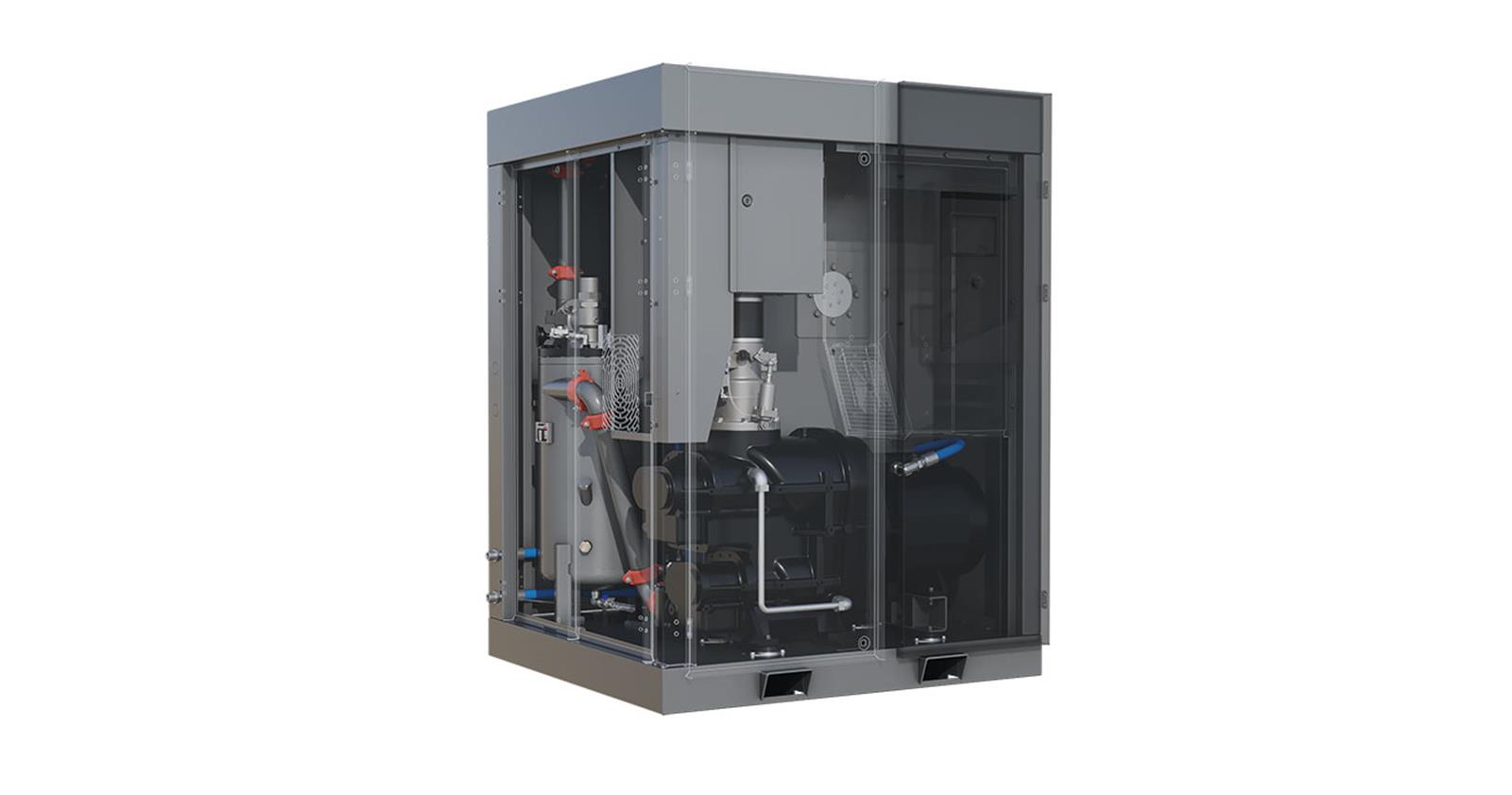

DALGKIRAN IMPETUS VSD 22 Double Stage Rotary Screw Compressor (IMPETUS VSD 22)

Model	Pressure	Capacity*	Motor Power	Connection Size	Dimensions (mm)	Weight	Noise Level
Minimum	Maximum
	bar	psi	m3/min	cfm	m3/min	cfm	kW/HP		Lenght	Widht	Height	kg	dB (A)
	7,5	110	1,02	36	4,32	153			955	1095	1580
IMPETUS VSD 22	8,5	125	1,04	37	4,15	147	22/30	G 1 1/4'	955	1095	1580	750	72
	10	145	1,03	36	3,75	132			955	1095	1580

• Two-stage screw produces energy efficiency by up to 10%
• Higher flow rate by up to 10%.
• Thanks to low compression rate low axial and compression forces
• Zero transmission losses by compact direct power transmission
• No requirement for a power transmission element results in a compact design
• Low axial and compression forces due to low compression ratio between screw blocks
• Thanks to low rotor speeds, a long service life
• Thanks to two-stage compression, low noise and vibration levels

• Ultra Premium IE5 energy efficiency-class electric motors
• Internal Permanent Magnet Motor (IPM)
• Compact design
• F-class insulation
• Optimum oil cooling at all speeds for high efficiency
• Low noise levels
• Grease-free lubricated motor bearings

• High acoustic performance in noise dampening
• Insulated cold air intake for energy efficiency

• High cooling efficiency in compact air and oil heat exchangers
• Suitable design for operating up to 45oC
• Radial fan for high cooling efficiency (37 kW and above)
• Low noise level with low speed radial fans
• Cooling fan driver for maximum energy efficiency

• Effective separator elements keep the amount of oil in the outlet air low (1-3 mg/m³) for high-quality compressed air
• Sep-n-sep type separator with enlarged surface area
• Easy to service
• High efficiency three stage air-oil separation system
