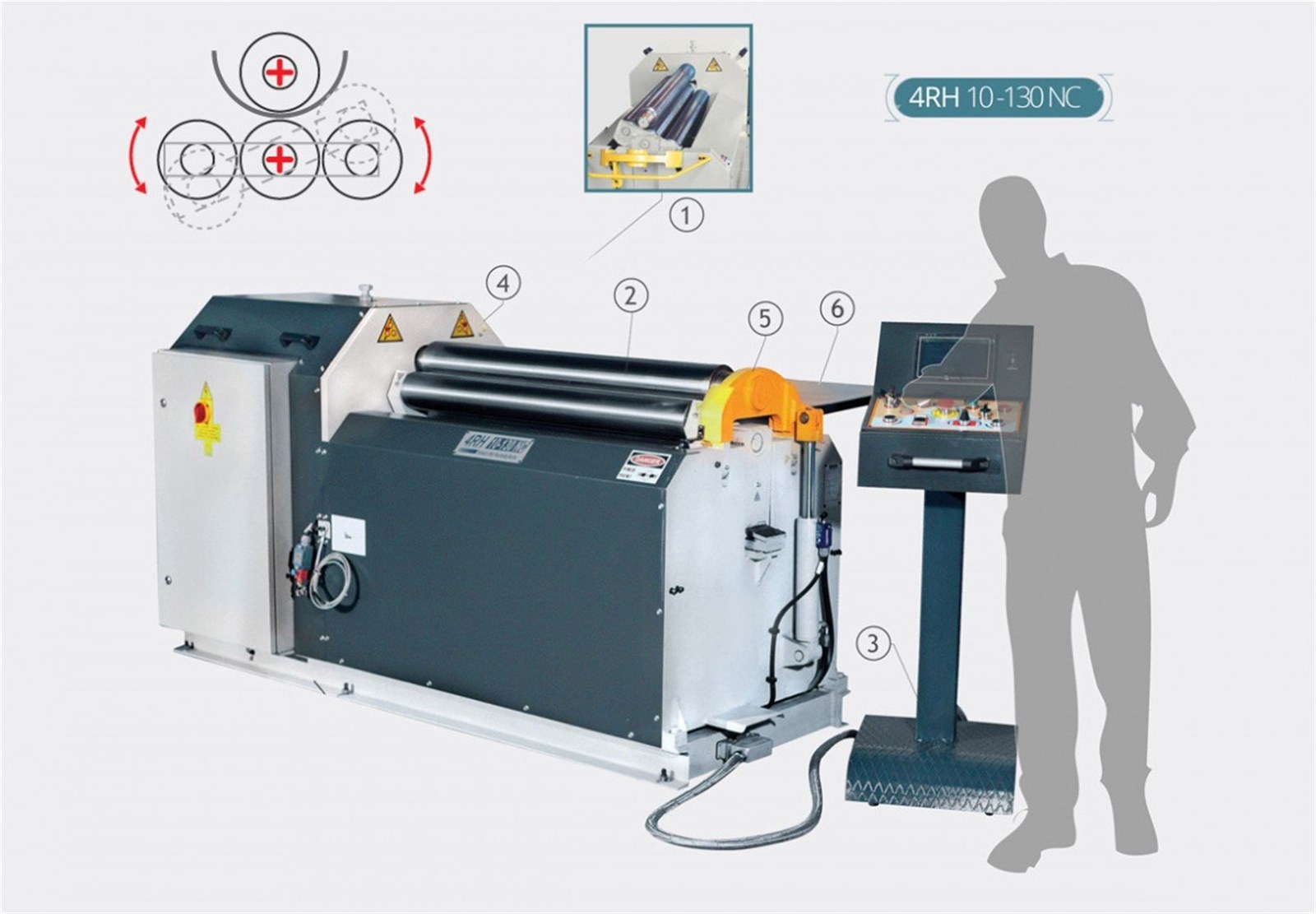

4RH 10-75 NC 4Rolls Hyd. Cassette Type Plate Bend. Machine

Şahinler 4RH 10-90 NC 4Rolls Hyd. Cassette Type Plate Bend. Machine (4RH 10-90 NC)

Brand : Şahinler

Stock Amount : 0

Est. Delivery Time90 Days After Order

Shipment Place Turkiye

Payment Terms%30 On Order, %70 Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Notify me when the price goes down

Notify me when it is in stock

Plate Bending Machines

4Rolls Hyd. Cassette Type Plate Bend. Machine With NC

NC Control Panel
Very suitable for light plates, aluminium or stainless steel bending
Ferrules in full circle or varying radiuses can be done easily
Roll and lateral rolls move with hydraulic piston through casette type frame in 4RH models
Overload protection
Top roll is powered by planetary gearbox. Bottom roll is powered by gear system.
Easy operation with mobile control panel
Welded steel frames
Hydraulic Drop-End for easy removal of finished ferrule
Feeding table

General Technical Specifications

Plate Bending Roll Type	4	pcs.
Useful Length	1050	mm
Central Rolls Diameter (Ø)	90	mm
Bottom Roll Diameter (Ø)	100	mm
Side Rolls Diameter (Ø)	100	mm

Bending Capacity Specifications and Power

Pre-bending thickness (Top Roll x 1,5)	1,5	mm
Min. Bending Diameter with Pre-bend (Top Roll x 1,5)	135	mm

Pre-bending thickness (Top Roll x 5)	2	mm
Min. Bending Diameter with Pre-bend (Top Roll x 5)	450	mm

Bending thickness without pre-bend (Top Roll x 1,5)	2	mm
Min. Bending Diameter without Pre-bend (Top Roll x 1,5)	135	mm

Bending thickness without pre-bend (Top Roll x 5)	2,5	mm
Min. Bending Diameter without Pre-bend (Top Roll x 5)	450	mm

Working Speed	4,5	m/min.
Motor Power	2,2	Kw


Machine Dimensions

Length	2650	mm
Width	850	mm
Height	1100	mm
Weight	1450	kg

• All technical speciﬁcations are subject to change without notice.
• Plate bending capacities are given for 260 N/mm2 plate yielding strength.
