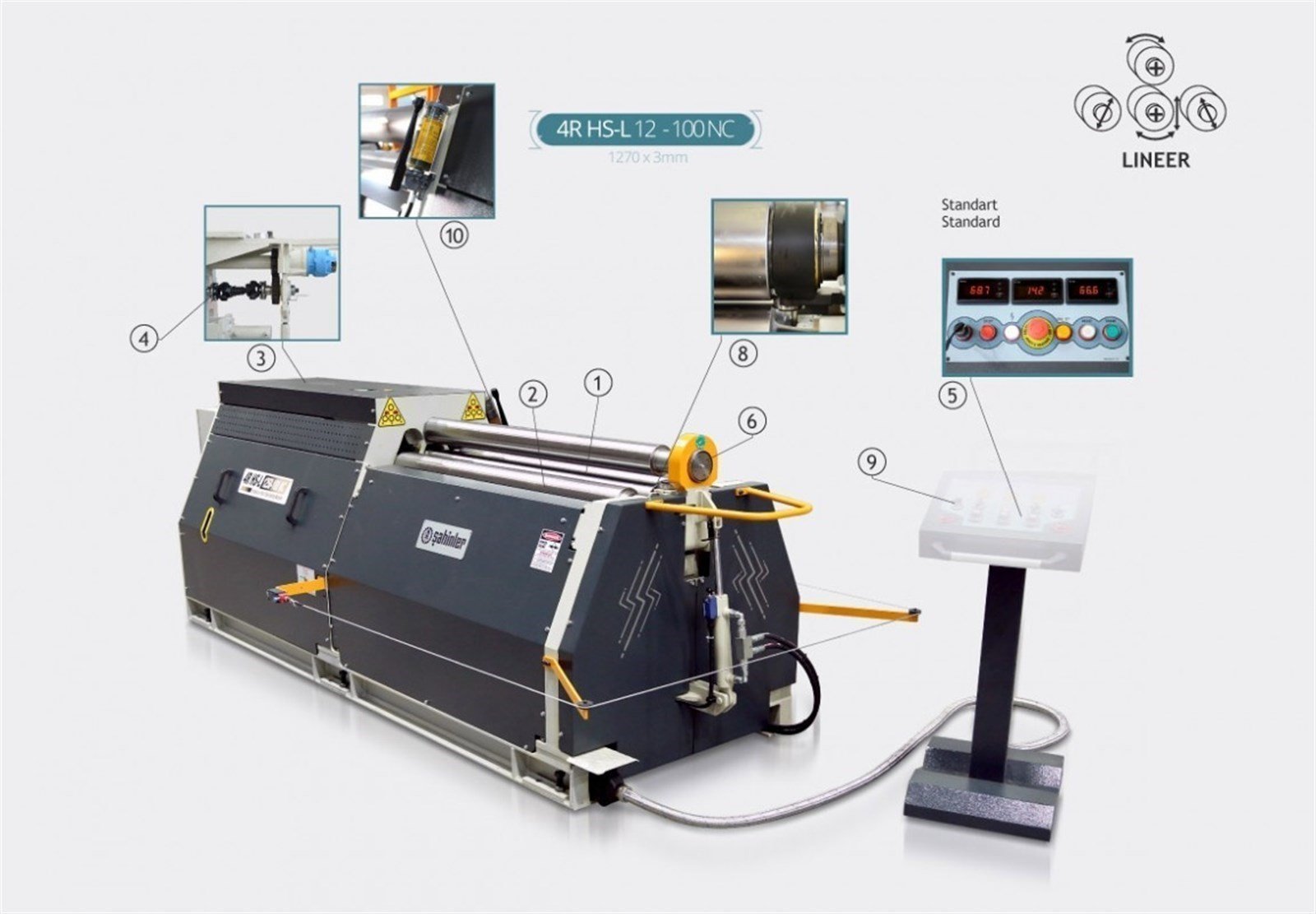

4R HS-L 10-100 4Rolls Hydraulic Plate Bending Machine

Şahinler 4R HS-L 20-130 4Rolls Hydraulic Plate Bending Machine (4R HS-L 20-130)

Brand : Şahinler

Stock Amount : 0

Est. Delivery Time120 Days After Order

Shipment Place Turkiye

Payment Terms%30 On Order, %70 Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Notify me when the price goes down

Notify me when it is in stock

Plate Bending Machines

4Rolls Hydraulic Plate Bending Machines

Very suitable for medium and light plates or stainless steel bending
Ferrules in full circle or varying radiuses can be done easily
Bottom pinching roll with hydraulic WEDGE SYSTEM. (Top/Down movements)
Double pre-bends (at both ends) in one pass is optained easily.
Overload protection
Two lateral rolls with double pinch pyramid action
Top roll is driven by a hydraulic motor coupled to the planetary gearbox
Bottom roller is driven by cardan joint system by means of gears.
Three digital readouts for easy roll positioning.
Hydraulic drop end for easy removal of finished ferrule
Easy operation with mobile control panel
Welded Steel frames
SAE 1050 (CK 45-50) forged or hot rolled, induction hardened and polished steel rolls
Conical bending device
Double speed working system
Central lubrication system

Automation with NC and CNC Control
Overhead crane for large diameters
Hydraulic lateral side supports for large diameters
Hydraulic plate ejector
Ground rolls for special jobs
Infinitively variable speed system
Electronical balancing system for parallel movement of the rolls

General Technical Specifications

Plate Bending Roll Type	4	pcs.
Useful Length	2050	mm
Central Rolls Diameter (Ø)	130	mm
Side Rolls Diameter (Ø)	130	mm

Bending Capacity Specifications and Power

Pre-bending thickness (Top Roll x 1,5)	2	mm
Min. Bending Diameter with Pre-bend (Top Roll x 1,5)	195	mm

Pre-bending thickness (Top Roll x 5)	3	mm
Min. Bending Diameter with Pre-bend (Top Roll x 5)	650	mm

Bending thickness without pre-bend (Top Roll x 1,5)	3	mm
Min. Bending Diameter without Pre-bend (Top Roll x 1,5)	195	mm

Bending thickness without pre-bend (Top Roll x 5)	4	mm
Min. Bending Diameter without Pre-bend (Top Roll x 5)	650	mm

Working Speed	1,5 -6	m/min.
Motor Power	3	Kw


Machine Dimensions

Length	4100	mm
Width	1100	mm
Height	1150	mm
Weight	2680	kg

• All technical speciﬁcations are subject to change without notice.
• Plate bending capacities are given for 260 N/mm2 plate yielding strength.
