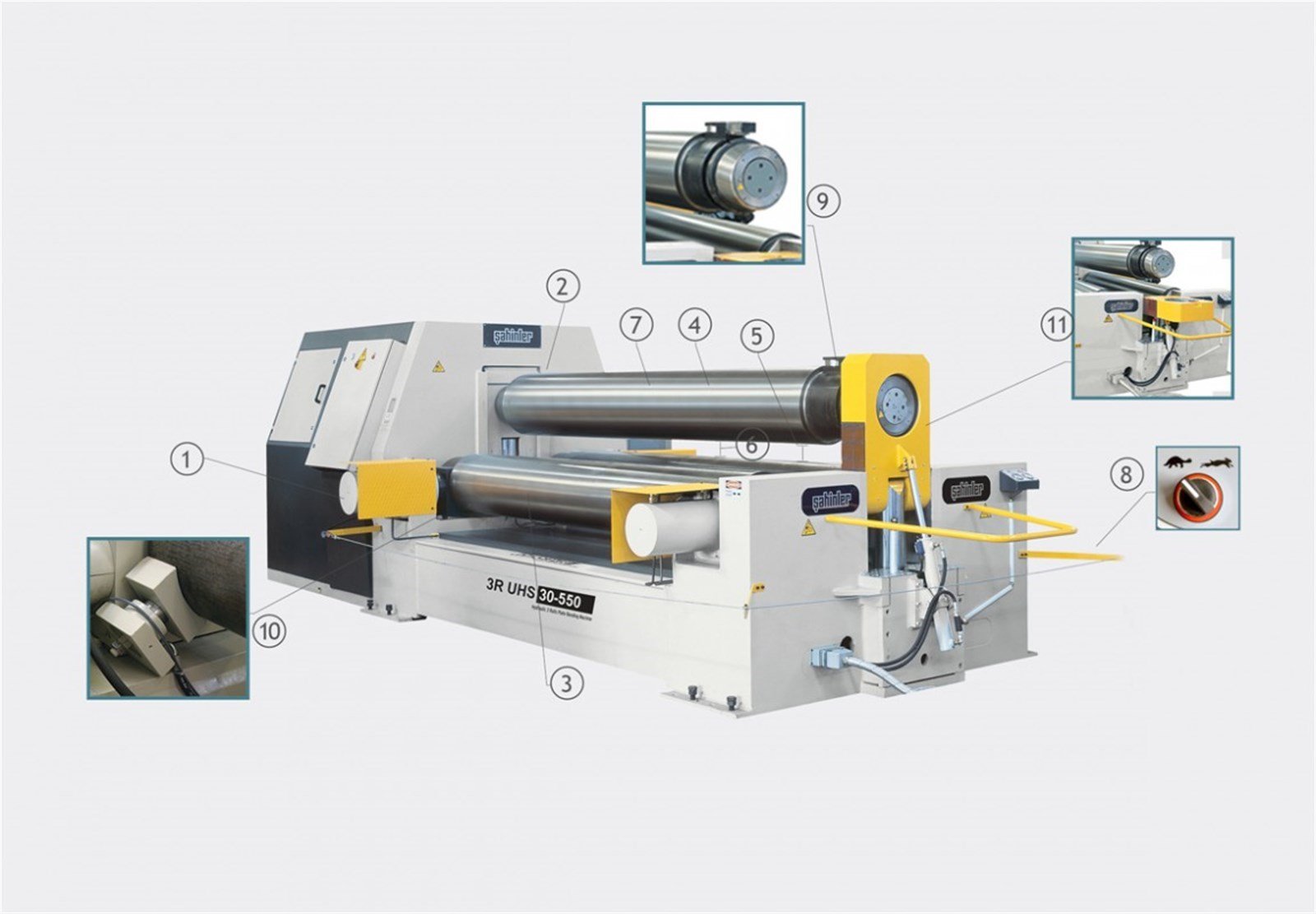

3R UHS 30-450 3Rolls Hyrdaulic Translating Type Plate Bending Machine

Şahinler 3R UHS 30-500 3Rolls Hydraulic Translating Type Plate Bending Machine (3R UHS 30-500)

Brand : Şahinler

Stock Amount : 0

Est. Delivery Time90 Days After Order

Shipment Place Turkiye

Payment Terms%30 On Order, %70 Before Shipment

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

Notify me when the price goes down

Notify me when it is in stock

Plate Bending Machines

3Rolls Hydraulic Translating Type Plate Bending Machines

High efficiency on heavy plate bending operation
Reduced overall dimensions and easiness of transportation on medium and big machines
Having the two bottom rolls horizontally moving, means also a lower working height which requires a smaller foundation pit and less anchoring load (in the smallest models you don’t need foundation)
On smaller models no need to place by digging.
During operation (pre-bending and bending phases), the plate always keeps its horizontal position. So material move more easily
The solid construction and the particular geometry of the 3R UHS enable to be used as a press brake bending machine
The 3R UHS machine can fulfill the best pre-bending on every required diameter.
The posibility of reducing the side rolls central distance (provided by the horizontal movement of the rolls) enables to increase the success of prebending while making smaller diameter bendings.
Another important future of the 3R UHS machine is the operating system of the top forming roll. In fact, the top forming roll can be used as a traditional press brake allowing perfect re-rolling and calibration operations of the produced tubes
In the same way it is also possible to obtain cones with heavy thickness by bending in several strokes the plate
With some 3 and 4 rolls pyramidal machines it is necessary to tilt the top roll to allow the produced tube removal. On the 3R UHS machine this is not necessary and therefore it is much more easier to remove the finished tube
Large working stroke allows to get best bending result
Can bend more thicker plates compare to equivalent 3 or 4 roll machines
SAE 1050 (CK 45-50) forged or hot rolled, induction hardened and polished steel rolls
Double Speed Working system
Conical Bending device
Electronic balancing system for parellel movement of the rolls
Standard Brake System
Hydraulic Drop End

Automation with NC control
Overhead crane for large diameters
Hydraulic lateral side supports for large diameters

General Technical Specifications

Plate Bending Roll Type	3	pcs.
Useful Length	3100	mm
Central Rolls Diameter (Ø)	500	mm
Bottom Roll Diameter (Ø)	460	mm
Side Rolls Diameter (Ø)	460	mm

Bending Capacity Specifications and Power

Pre-bending thickness (Top Roll x 1,5)	35	mm
Min. Bending Diameter with Pre-bend (Top Roll x 1,5)	750	mm

Pre-bending thickness (Top Roll x 5)	45	mm
Min. Bending Diameter with Pre-bend (Top Roll x 5)	2500	mm

Bending thickness without pre-bend (Top Roll x 1,5)	45	mm
Min. Bending Diameter without Pre-bend (Top Roll x 1,5)	750	mm

Bending thickness without pre-bend (Top Roll x 5)	60	mm
Min. Bending Diameter without Pre-bend (Top Roll x 5)	2500	mm

Working Speed	1,5-4	m/min.
Motor Power	73,5	Kw


Machine Dimensions

Length	7450	mm
Width	3100	mm
Height	2650	mm
Weight	33000	kg

• All technical speciﬁcations are subject to change without notice.
• Plate bending capacities are given for 260 N/mm2 plate yielding strength.
