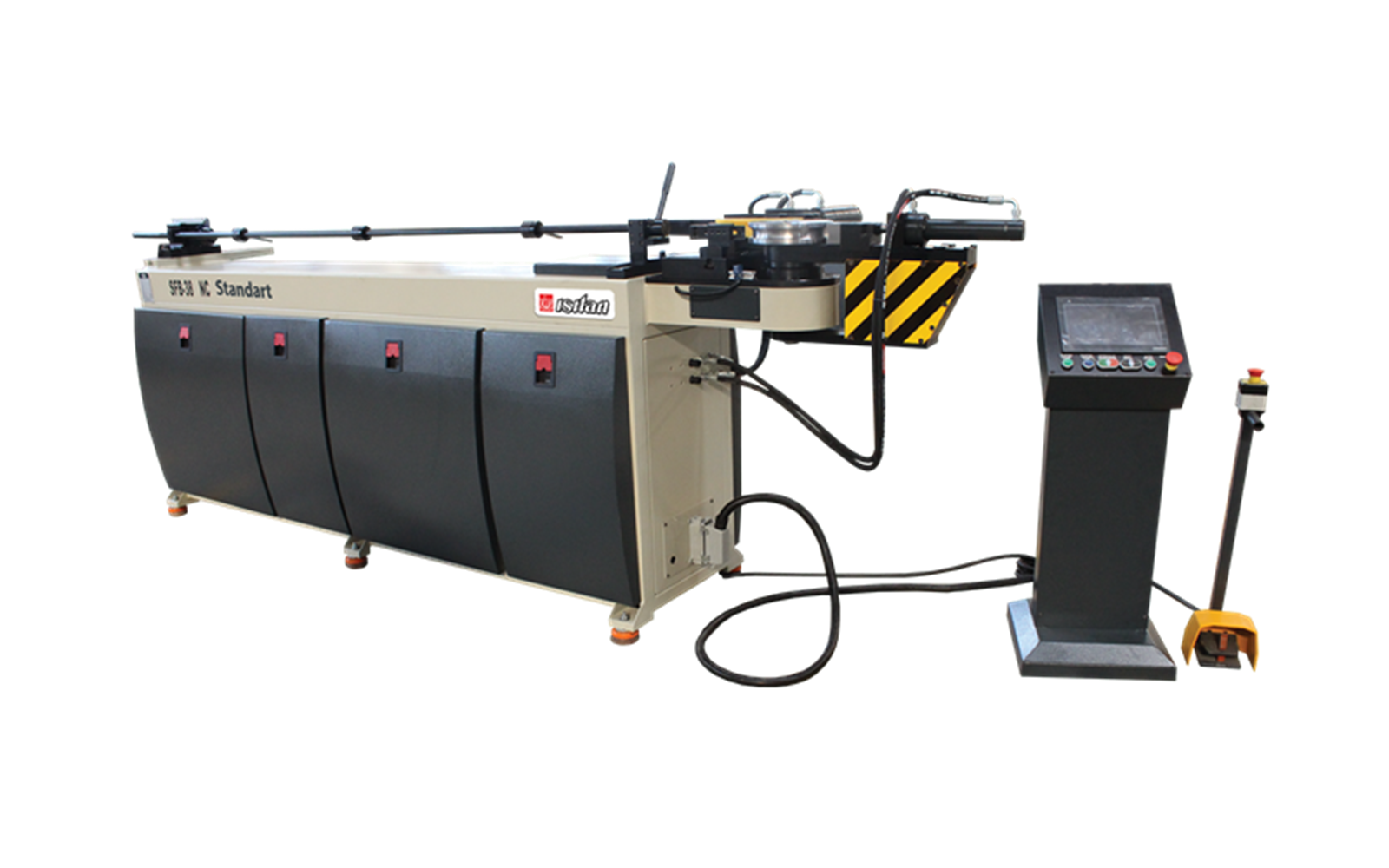

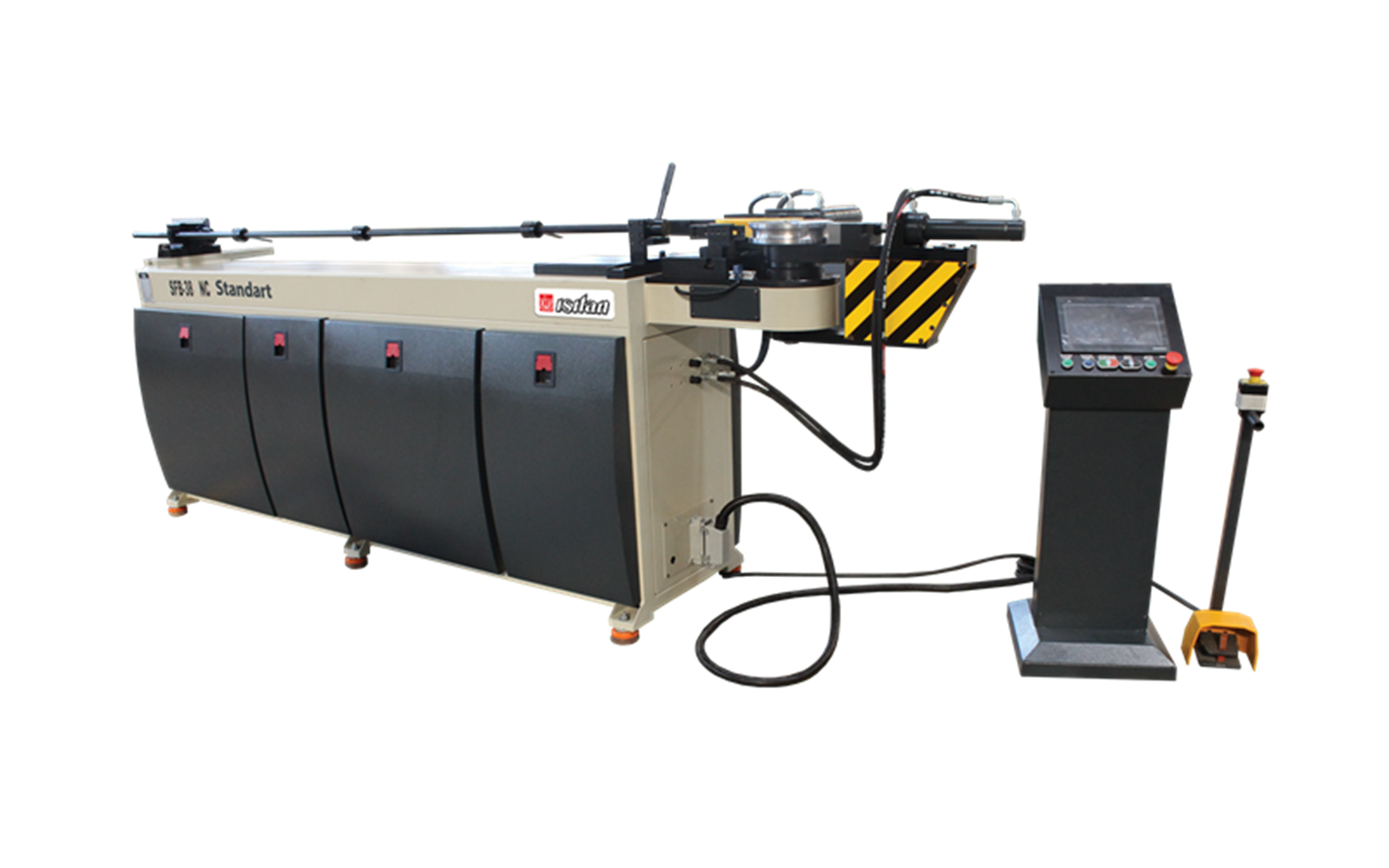

Isitan SFB NC 65 Nc Controlled Pipe Bending Machines With Mandrel - Stock (SFB NC 65 Nc)

Brand : Isitan

Price : 0,00 EURO + VAT

Vat included : TL 0,00

Stock Amount : 1

Est. Delivery TimeREADY TO SHIP

Shipment Place Turkiye

Payment Terms% 100 T/T On Order Confirmation

Made InTurkiye

Min. Order Qty.1 Pcs.

Warranty1 Year

CONDITIONNEW

NOTEPLS. CHECK CURRENT AVAILABILTY

Ask For Offer

Add to Favorites

Add to My Wish List

Compare

Notify me when the price goes down

Notify me when it is in stock

Artır Azalt

Pipe Processing Machines

Nc Controlled Pipe Bending Machines With Mandrel

1 Set Bending Die in requested size
NC Control Unit
10" Touchscreen
Direct Gear Drive Electric Motorized Bending System with Gearbox
4 Hydraulic Pistons
Hydraulic Clamping
Hydraulic Support
Hydraulic Slider
Hydraulic Mandrel
100 Programm Memory
20 squential bendings in each programm
Daily and Total Working Status Report
Error and Warning Messages
Mobile Control Panel
Mobile Foot Pedal with Emergency Stop Button
Manual (step by step) and Automatic Bending Mode Features
Mandrel and Non-mandrel Bending Mode Features
Bending angle with Encoder
Brake Motor for precise bendings
Gauge Distance Bracket
Safety plate on back of bending arm
Electrical panel safety lock and panel lock with key
Overload Protection System
CE Certificated

MODEL	SFB NC 65
Max. Capacity	Ø65x4mm	mm
Maximum Bending Radius	250	mm
Degree of Bend	190	°
Hydraulic Pressure	50-220	bar
Working Length	3000	mm
Bending Speed	D / V	(mm/s)
Motor power	11,5	kw
Machine dimensions LxWxH	1200x4750x1300	mm
Weight	2800	kg
