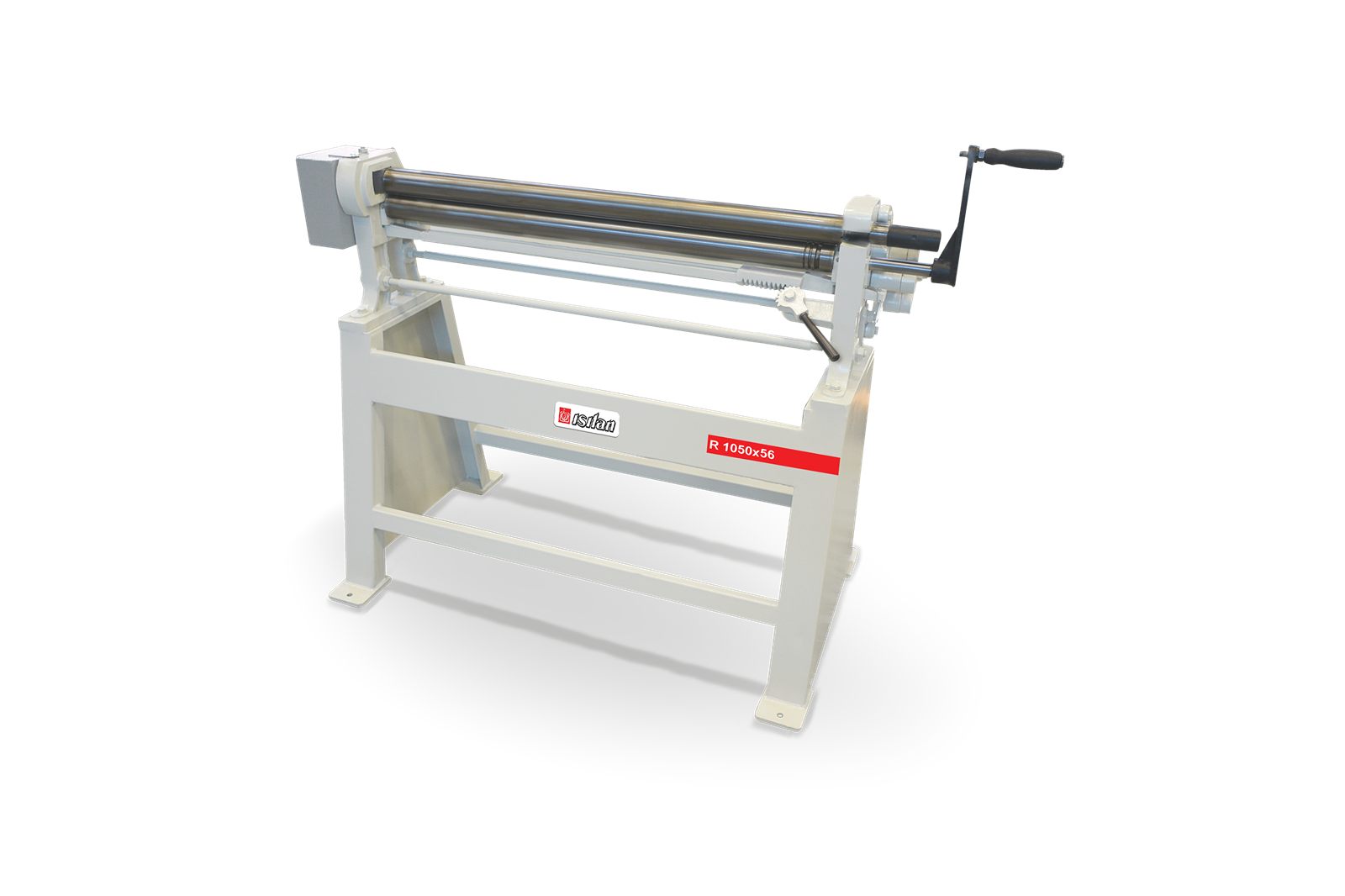

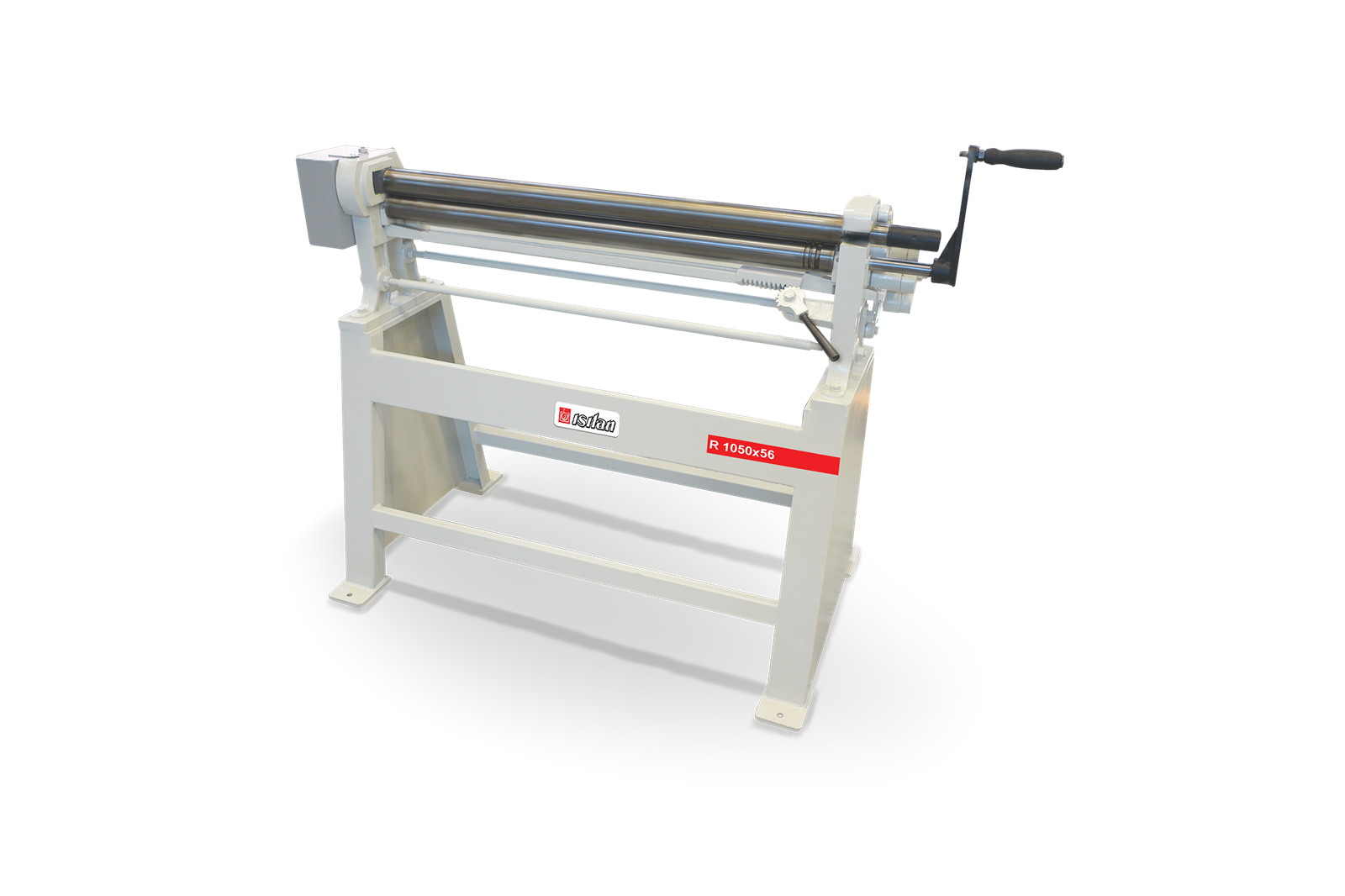

Isitan R 1050 x 56 Manual 3Rolls Plate Bending Machine (R 1050 x 56)

Very suitable for light and medium plates, aluminum or stainless steel
Built according to EC Safety Directives and has CE Mark
Manual Drop-End for easy removal of finished ferrule
SAE 1050 Quality Certificated Steel Rolls with high tensile strength
Cast Iron Main Frames
Wire grooves at the end of the rolls
Manual dropend

Induction hardened rolls (HRC58-60)

General Technical Specifications
Plate Bending Roll Type	3	pcs.
Useful Length	1050	mm
Roll Diameters  (Ø)	56	mm
Bending Capacity Specifications and Power
Bending Capacity	1	mm
Min. Bending Diameter with Pre-bend (Top Roll x 5)	84	mm
Wire Grooves Dia.	4/7/10
Machine Dimensions
Length	1400	mm
Width	700	mm
Height	1120	mm
Weight	185	kg

• All technical specifications are subject to change without notice.

• Plate bending capacities are given for 260 N/mm2 plate yielding strength.
