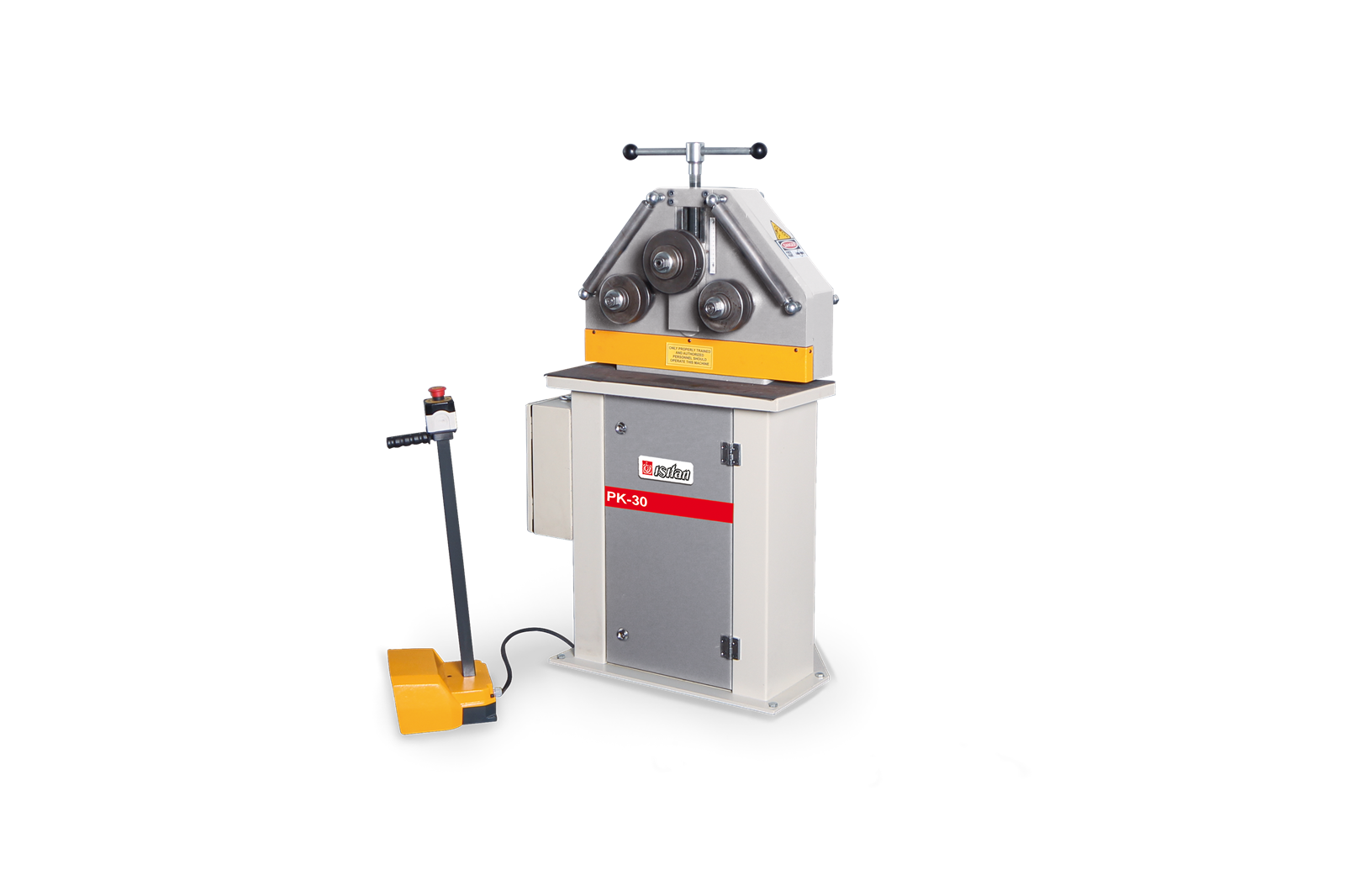

Isitan PK-30 Motorized 3 Roll Profile Pipe Bending Machine (PK-30)

Easy operation with mobile control panel with push buttons
Welded steel frames
Built according to EC Safety Directives and has CE Mark
Two bottom rolls powered
Direct drive power system with gears
Top roll is idle ( free turning )
Rolls are hardened
Adjustable guide rolls
Horizontal and vertical working position

Optional Profile-Flat Bar Bending Rolls
Special Roll Sets

MODEL	PK-30
Shaft diameters	Ø 32	mm
Lower rolls diameters	148	Ø mm
Top rolls diameters	118	Ø mm
Working speed	2-4	m / dk m / min
Motor power	0,75	kw
LxWxH	600x800x1450	mm
Weight	210	kg
Rolls Diameter	--	mm
Shaft Lengh	--	mm
Bending Speed	--	d / dk rpm
N° of motorized rolls	--	adet pcs
N° of side rolls axes	--	adet pcs
Machine weight, without optionals	--	kg
Machine Dimensions	--	mm
