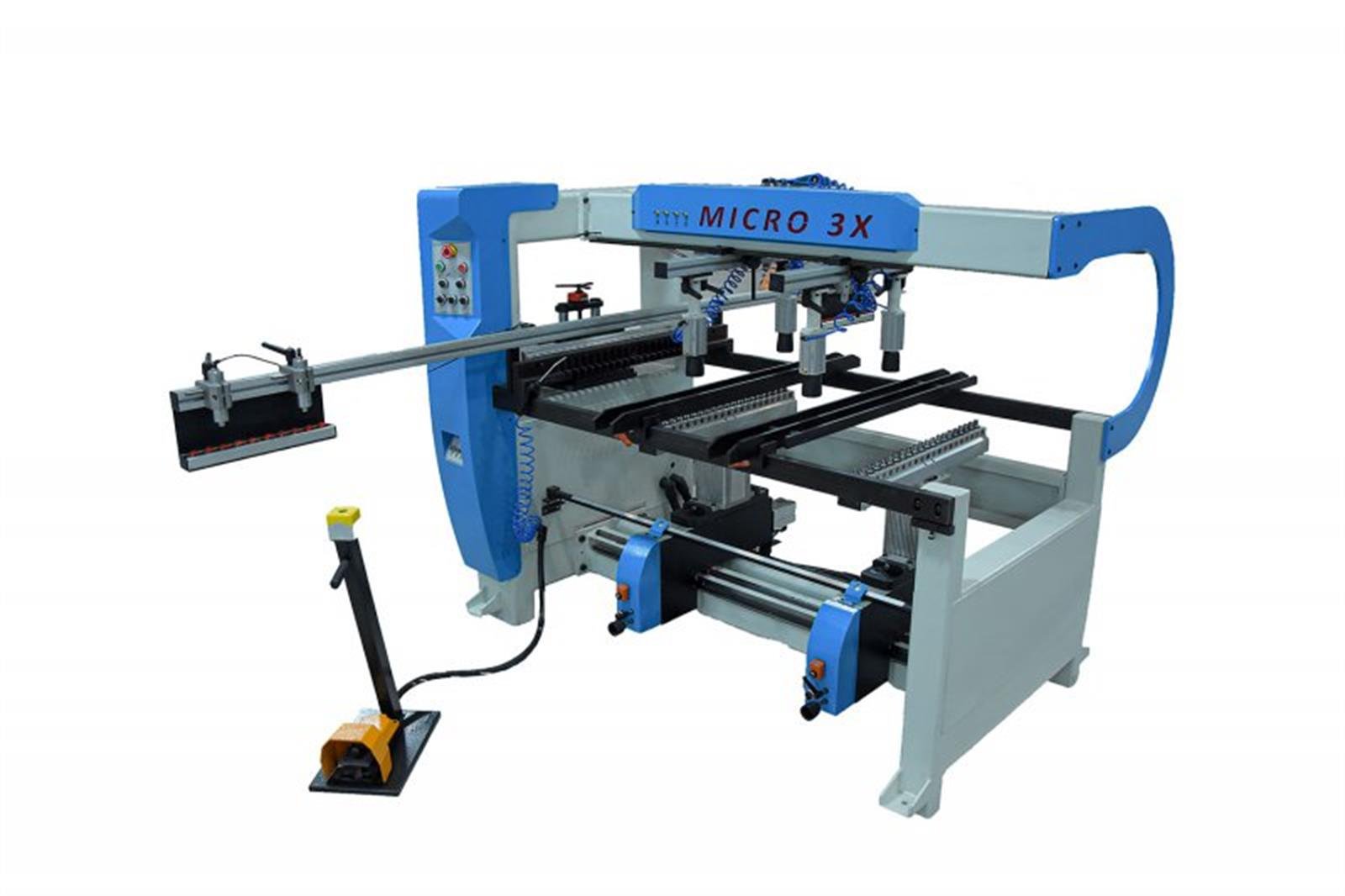

Aretmak Artemak Micro 3x Multi Hole Machine (Artemak Micro 3x Multi Hole Machine)

DISTANCE BETWEEN DRILL CENTERS :

32 mmX 640 mm

MAXIMUM BOTTOM DRILLING DEPTH  :

50 mm

MAXIMUM FRONT DRILLING DEPTH :

50 mm

SUPPORTING COMPONENTS :

PNEUMATIC

PRODUCTION YEAR :

2014

TOTAL ENGINE POWER  :

4,5 kW

VOLTAGE :

380 - 400 V / 50 - 60 HZ

CURRENT :

9 AMPER

WEIGHT (approx) :

700 kg

AIR PRESSURE :

6 - 8 bar

PNEUMATIC PRESS :

4 PIECE

DIMENSIONING :

INDICATOR

DIMENSIONS (length-height-width) :

2075 mm - 1450 mm - 1650 mm

TABLE WIDTH :

900 mm

WEIGHT (approx) :

700 kg
